Are you confused about whether to use a clear or diffused cover for your LED aluminum profile? Choosing the wrong cover can trap your light, expose ugly LED dots, or even ruin your commercial project’s inspection. In this guide, LEDLINEA will break down the true engineering differences so you can specify the exact optical lens for your next high-end lighting project.
Clear vs. Diffused: The Quick Breakdown
Before diving into the advanced optical shapes, here is the fundamental material difference you must know:
Clear Covers (Transparent):
Offer 90-95% light transmittance. They maximize raw brightness and provide physical protection.
The Catch: They will expose harsh LED dots (hotspots) and glare.
Best for: Hidden indirect lighting, or paired with a convex lens for wall grazing.

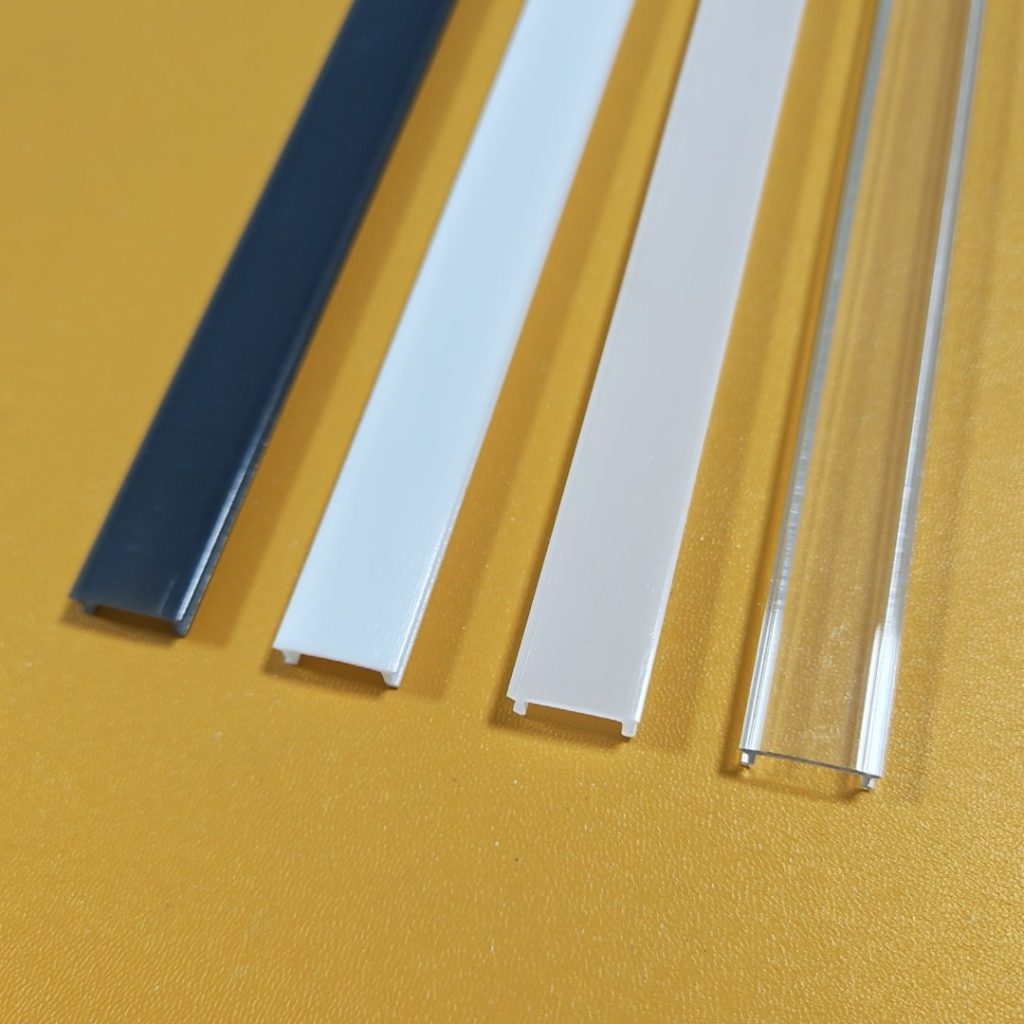

Diffused Covers (Milky / Opal / Frosted):
Offer 60-70% light transmittance. They contain scattering agents that blend the light into a smooth, neon-like glow.
The Catch: You lose about 30% of your raw brightness.
Best for: Direct-view applications (like under-cabinets, ceiling lines, or wardrobes) where a spotless, high-end look is the priority.
⚠️ Pro Installation Warning: The Glossy Surface Trap

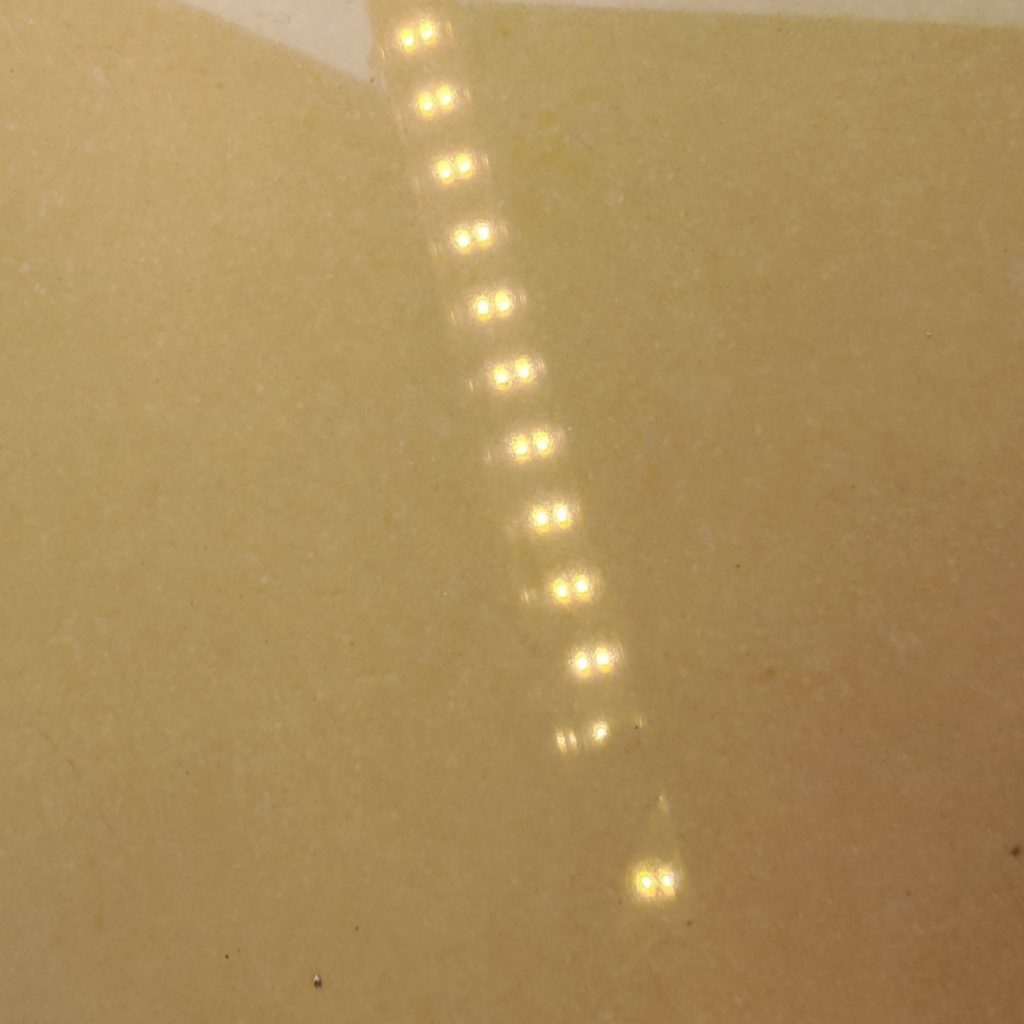

A common mistake we see on job sites is using a clear cover facing downward over highly reflective surfaces, such as polished marble or glossy ceramic tiles. Because clear covers offer zero light diffusion, the glossy floor acts like a mirror. This creates Specular Reflection, meaning you will clearly see every single LED dot perfectly reflected on the floor—even from 1 meter away.
Actionable Tip: If your linear lighting is installed directly above a glossy floor or polished countertop, you MUST use a Milky/Opal diffused cover, or upgrade to high-density COB LED strips to eliminate the dotted reflection
The 3 Cover Geometries: It’s Not Just About Material
When choosing a cover, you must consider its shape, as it directly changes the beam angle of your LED strip:

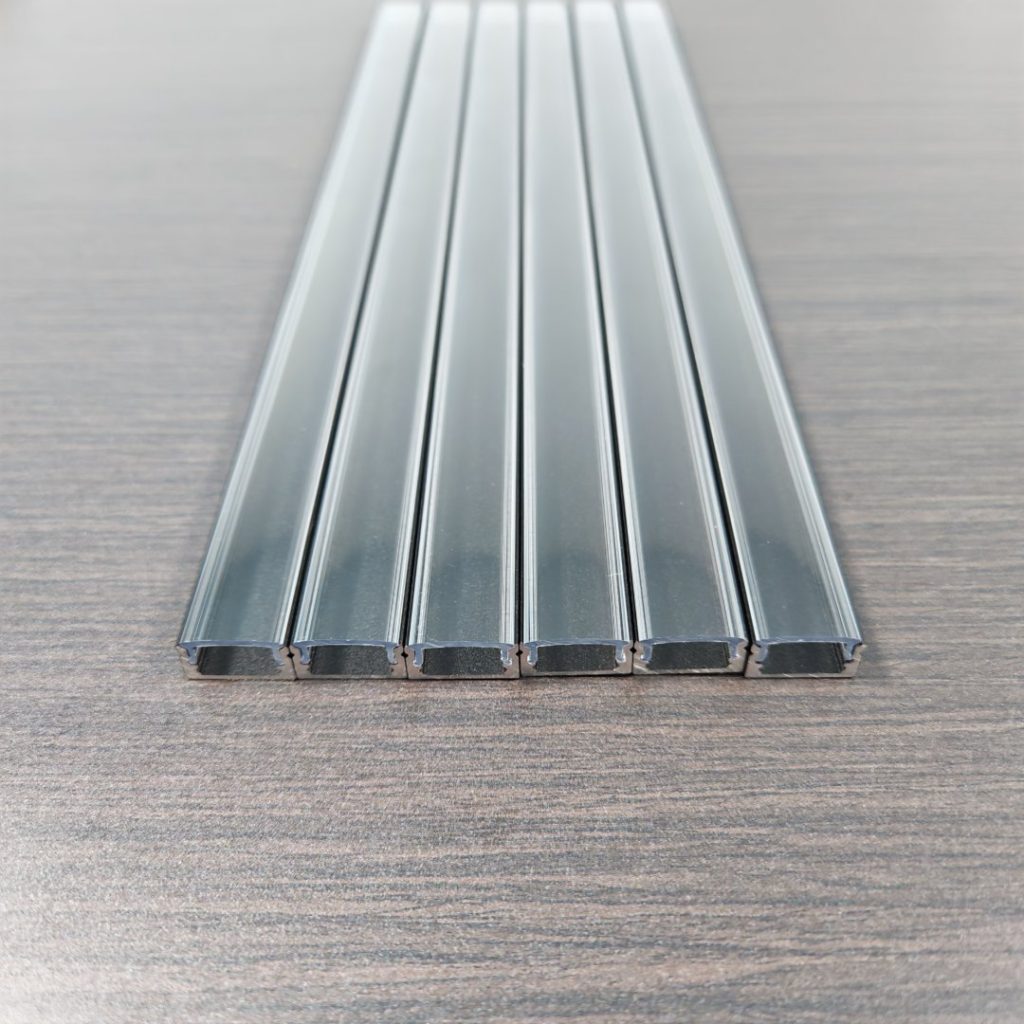

Flat Covers (120° Beam):
Perfect for hidden indirect cove lighting, light box backlighting, or jewelry displays where you need 100% light transmittance and the sparkling effect of raw LED diodes. However, they trap some light against the aluminum walls if used for direct lighting.
Cove Lighting

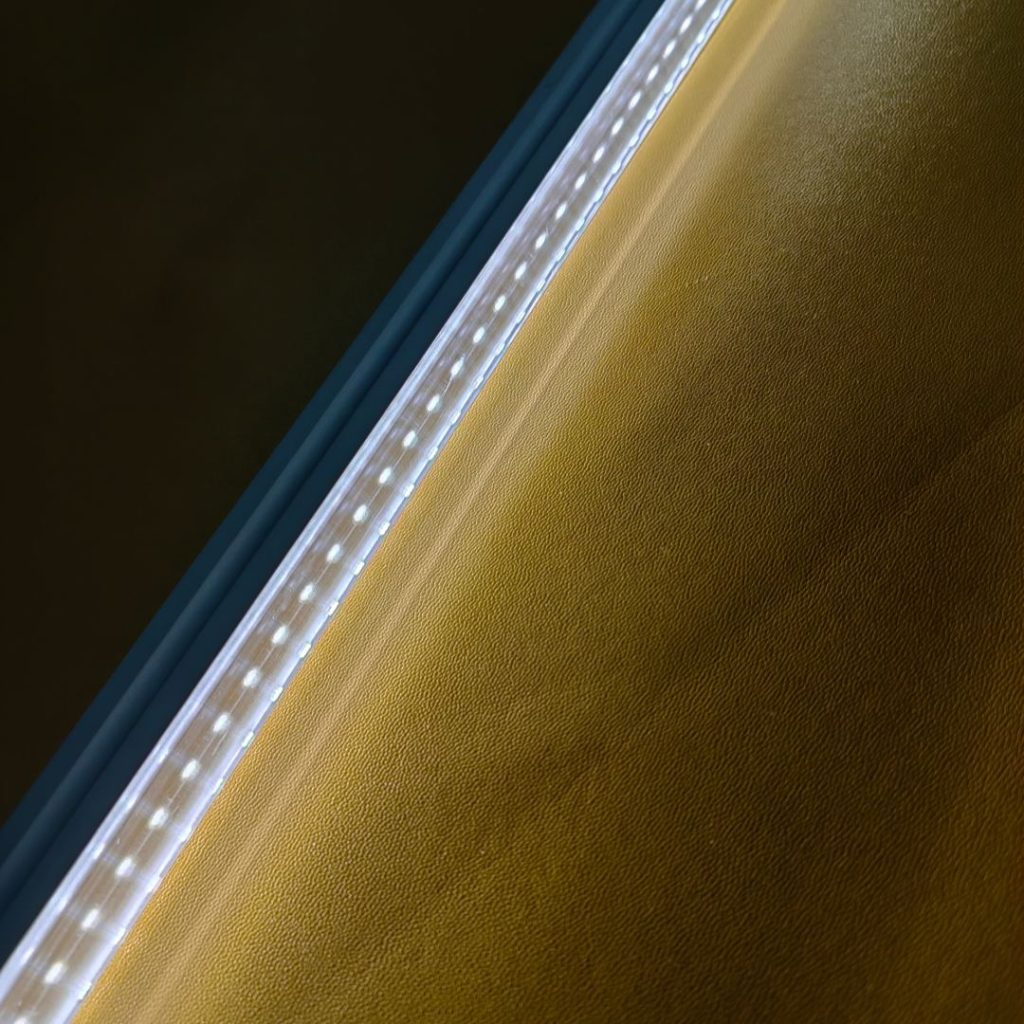

The Secret to Perfect Cove Lighting: Clear Cover + Matte White Coating
You might wonder: “If clear covers show LED dots, how can I use them for wall washing without seeing the dots?” The answer is Indirect Cove Lighting.

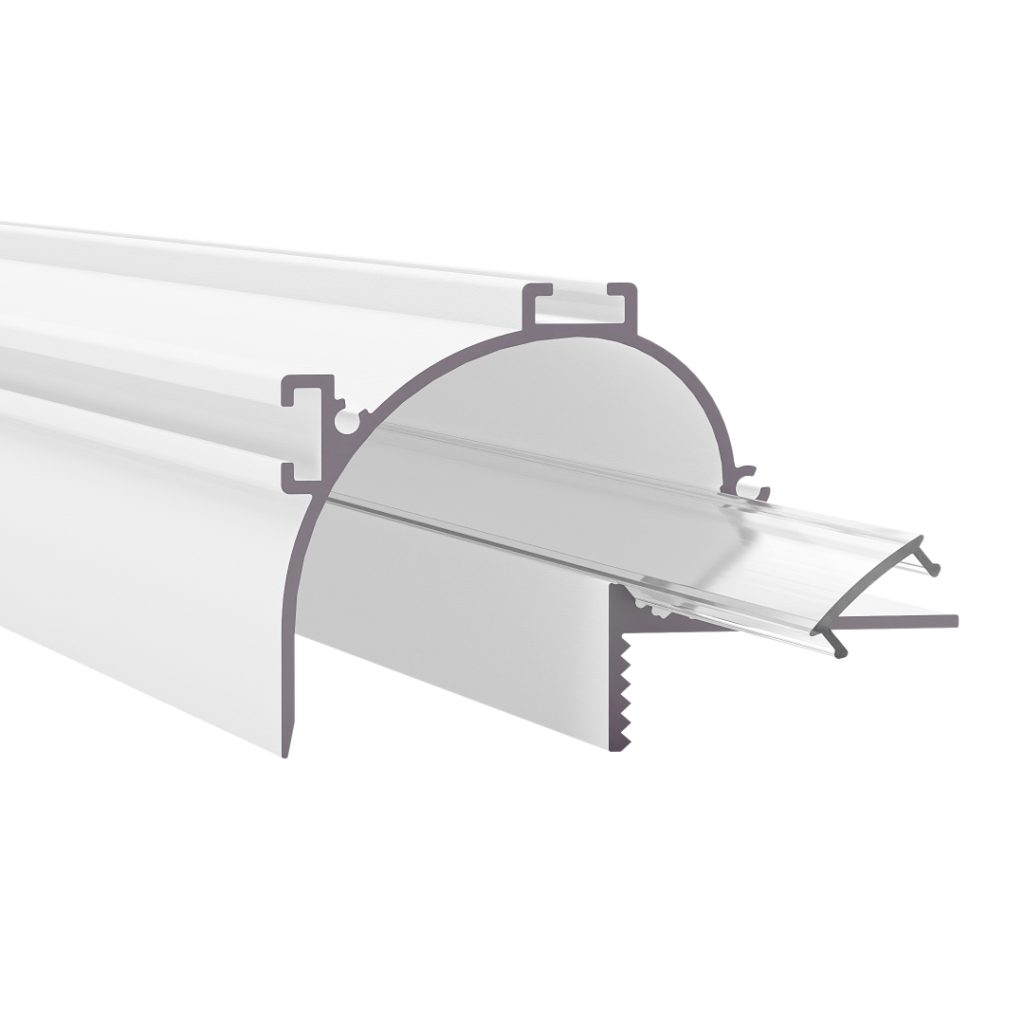

When you use a plaster-in profile or a cove lighting channel, the light does not shine directly into your eyes. Instead, it bounces off the profile’s inner cavity and the wall.
The Engineering Trick: We highly recommend pairing a Clear PC Cover with our Matte White Powder Coated Aluminum Profile. The clear cover ensures 95% maximum light transmittance (no brightness lost). Then, the matte white coating of the aluminum creates perfect Diffuse Reflection. It scatters the light evenly before it hits the wall. The result? A buttery-smooth, dotless wall wash with maximum lumen output.

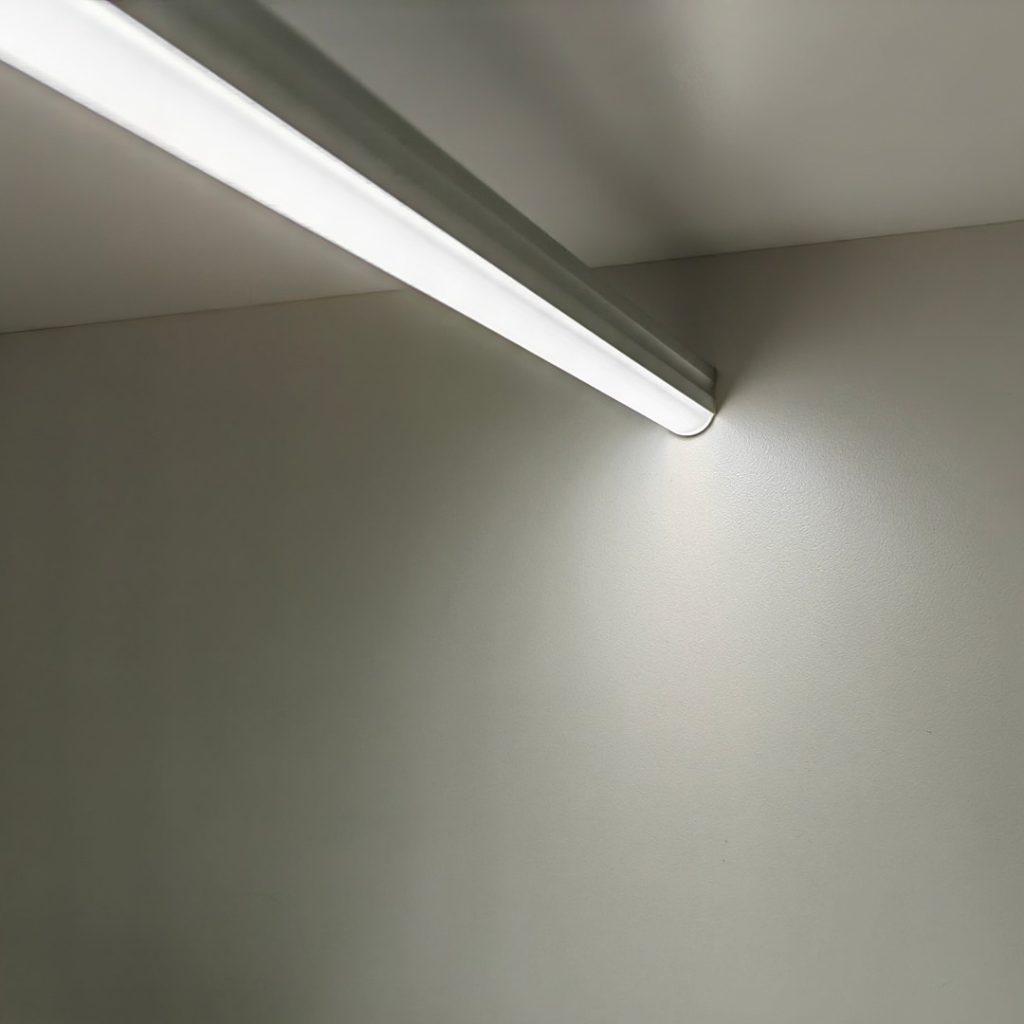

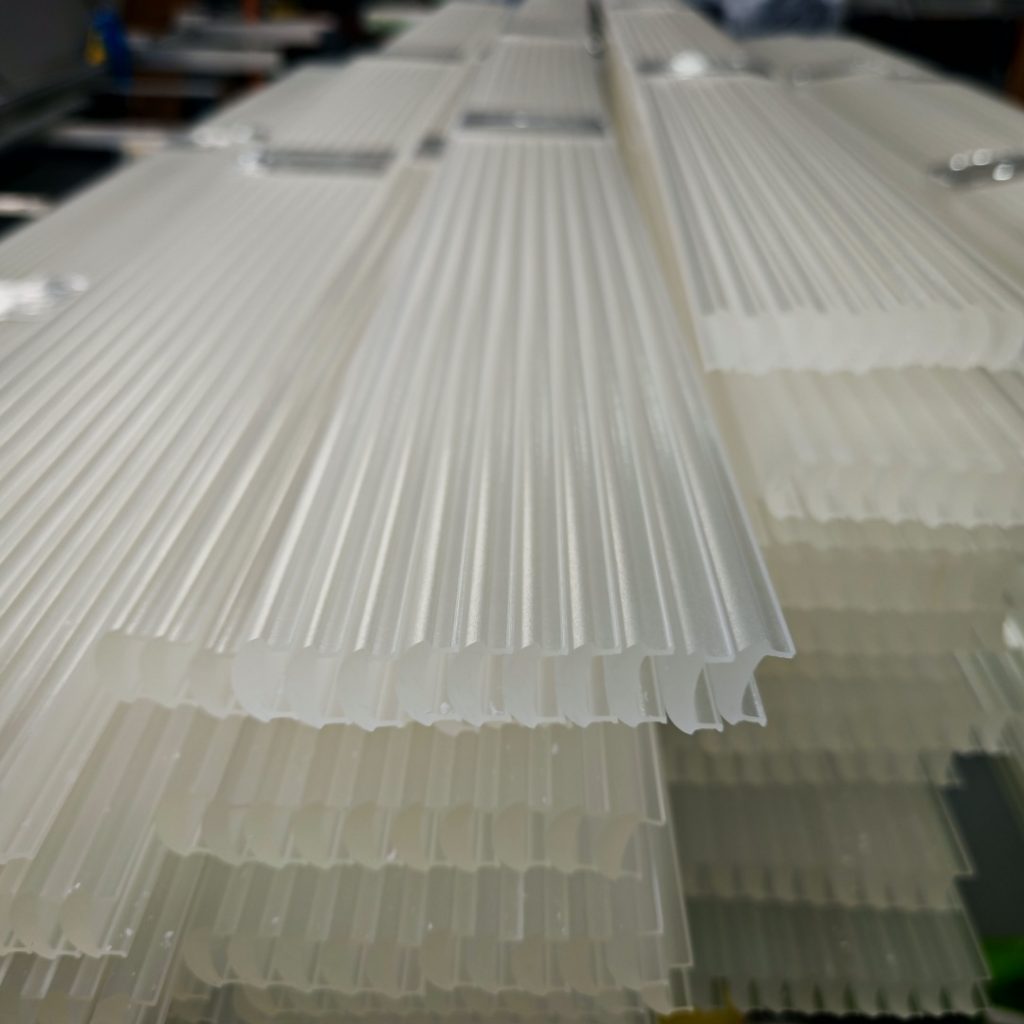

Curved PMMA Diffusers (180° Wide Spread):
By pushing the frosted PMMA material outside the aluminum channel walls, it allows light to scatter from the sides, creating a massive, dot-free 180° wash of light. This is ideal for direct illumination and wide area wall washing.

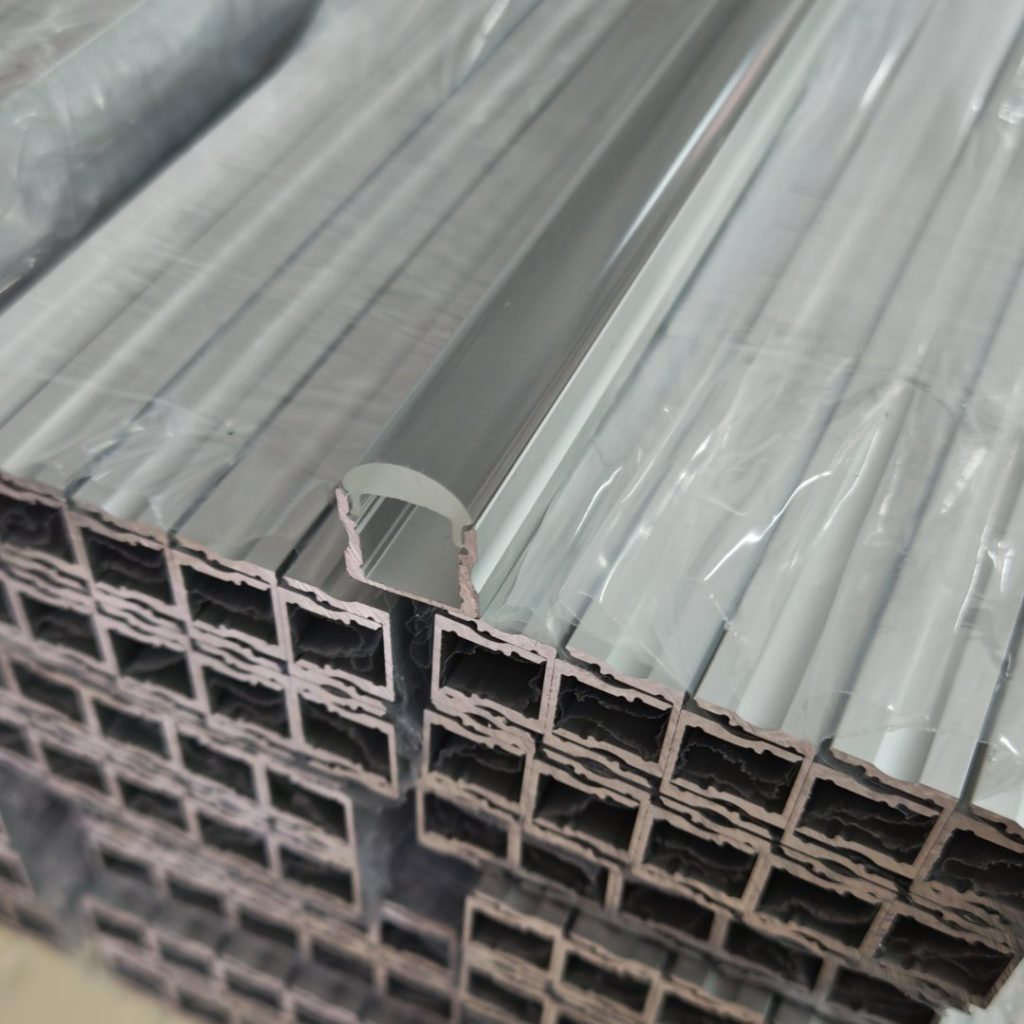

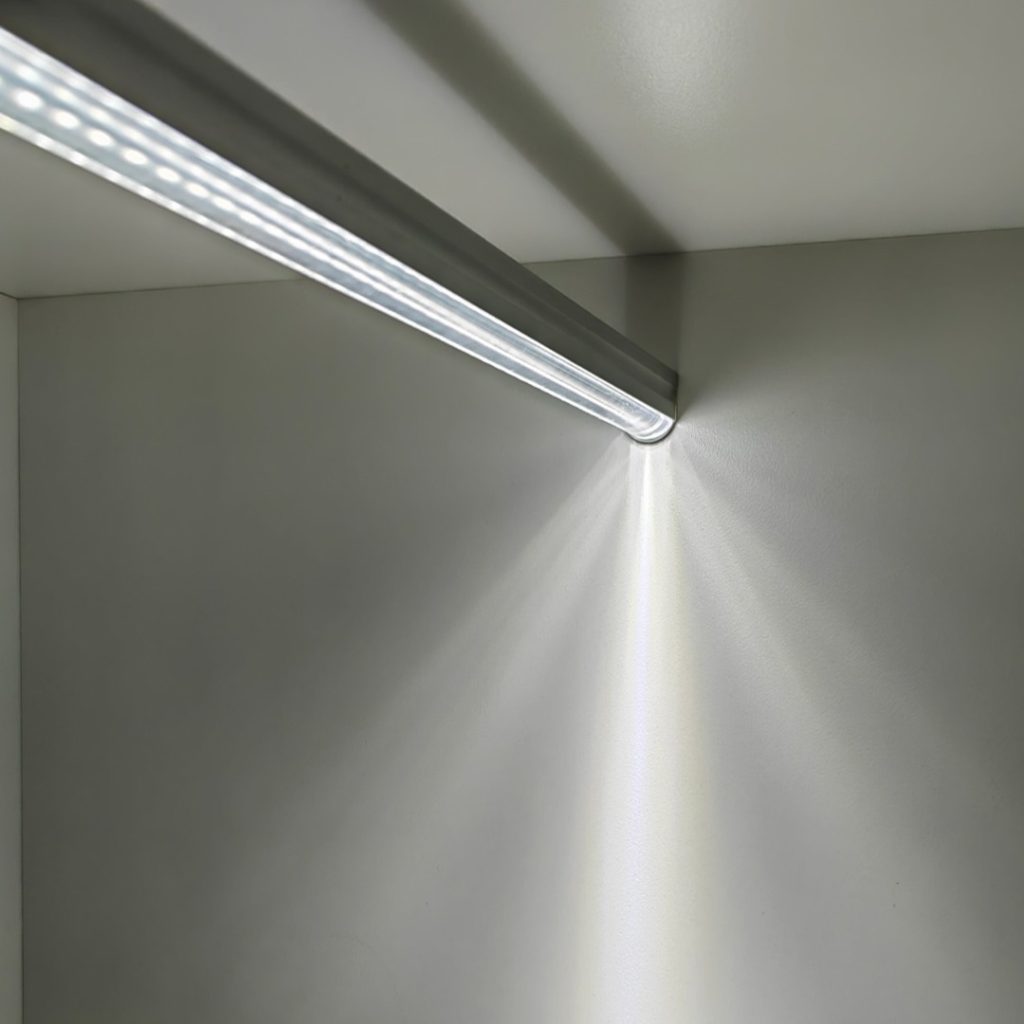

Convex Clear Lens (20° Wall Grazing):
This is an absolute game-changer. By adding a curved clear lens, we physically compress the raw 120° LED light into a razor-sharp 20° to 30° beam. It is the ultimate lighting designer’s tool for grazing textured walls, stone, or wood panels.
⚠️The Compliance Trap (Why Bare Strips Are a Disaster)
Many contractors try to save money by skipping the clear cover to get “maximum raw brightness.” For professional B2B projects, this is a fatal mistake.
- Strict Electrical Compliance (NEC/CE/UL): In developed markets like North America, Europe, and Australia, electrical codes strictly mandate that even low-voltage 24V LED strips must have physical protection. A bare LED strip violates these codes. Our clear covers ensure a mandatory IP20 rating (touch-proof). Without it, your commercial project will fail inspection, and insurance claims for fire hazards will be denied.
- The Cleaning & Maintenance Nightmare: Dust accumulates rapidly in commercial spaces. If a cleaner wipes a naked LED strip with a wet cloth, they will easily rip off the diodes or cause a dead short.
- Fire Barrier: Our high-quality clear covers are V0 flame-retardant. They act as a critical physical shield, preventing electrical sparks from directly igniting wooden cabinets or drywall.
The Executive Choice: Anti-Glare Covers (UGR<19)
If you are designing lighting for high-end offices, hospitals, or schools in Europe and North America, standard frosted covers are not enough. High-output LEDs can still cause severe eye strain.

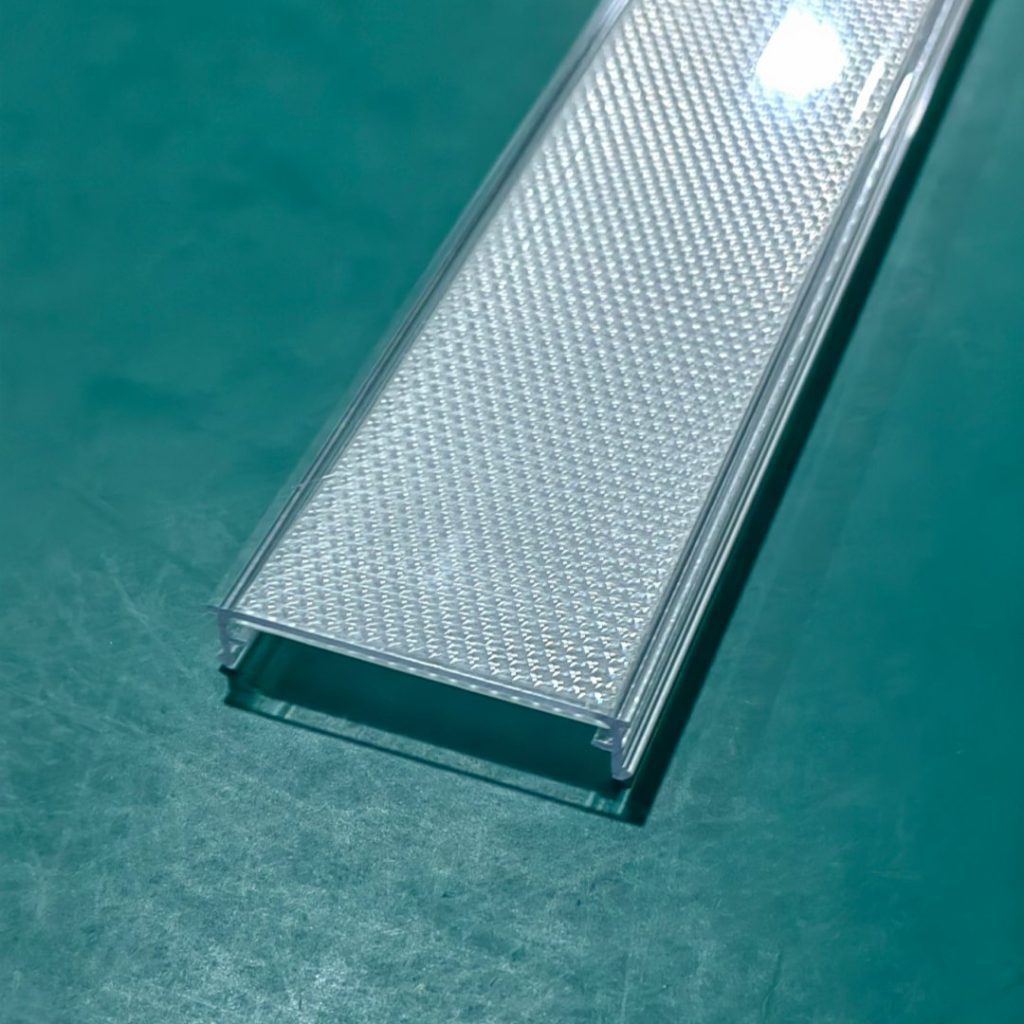

Enter the Anti-Glare (Micro-Prismatic) Cover. This cover features a microscopic textured surface that breaks down intense LED light beams, reducing the UGR (Unified Glare Rating) to strictly under 19. It provides brilliant workspace illumination while remaining completely comfortable for the human eye. If your clients are architects or corporate designers, this is the cover you must specify.
The Depth Secret: 1708 vs 1715 Profile
Why Channel Depth Changes the Beam Angle Did you know that using the exact same clear lens on two different aluminum profiles creates completely different lighting effects? It’s all about optical focal length.
- The Shallow 1708 Profile (8mm deep): Because the LED chips are closer to the lens, the light spreads wider before hitting the curve. This gives you a medium 45°-60° beam.
- The Deep 1715 Profile (15mm deep): This is the ultimate Wall Grazing weapon. The deeper channel places the LED chip at the perfect focal point. The lens compresses the light into a razor-
- sharp 20° narrow beam, perfect for highlighting stone or textured walls.

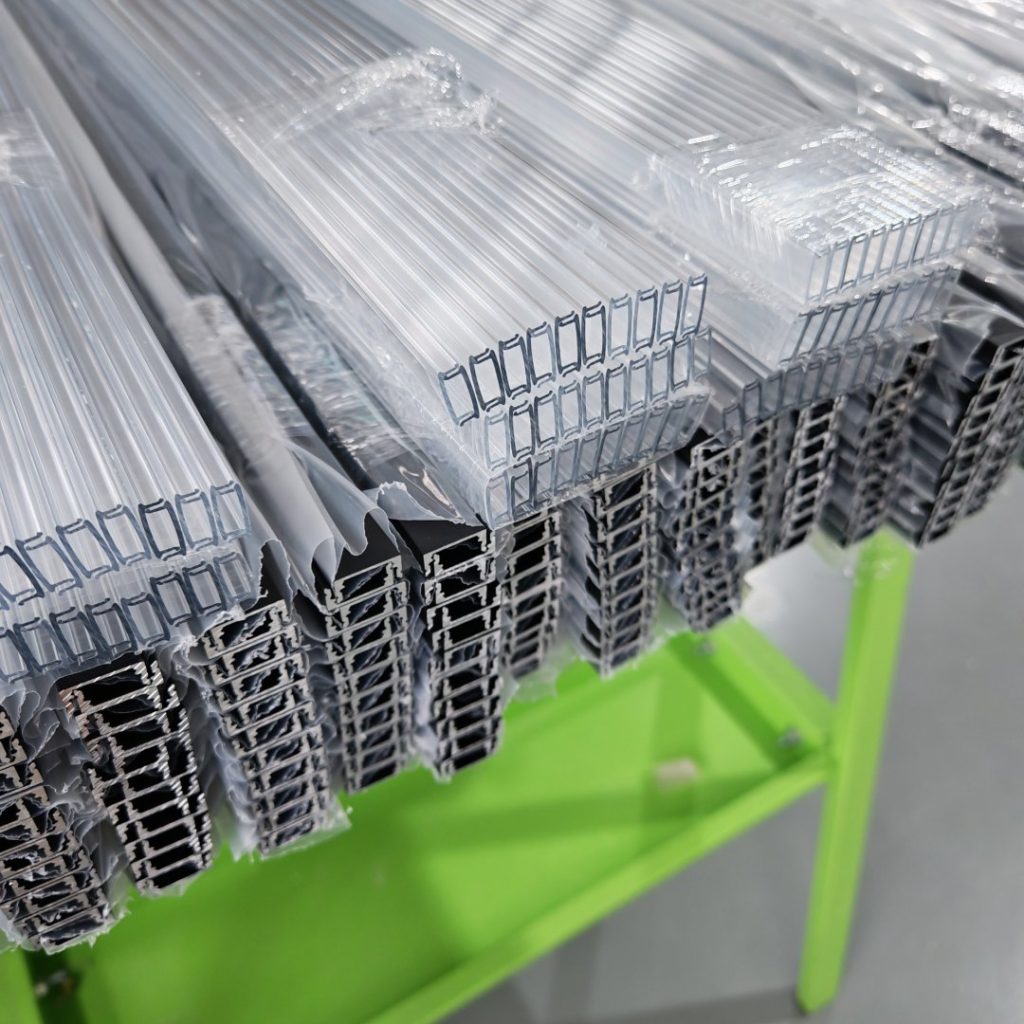

Partner with a True Manufacturing Source
The best part? Our premium covers are cross-compatible. Whether you use the ultra-slim 1708 profile or the deep 1715 profile for massive heat dissipation, they share the exact same 17mm wide covers. You can easily switch between a flat diffuser for general lighting or snap in a 20° clear lens for high-end wall grazing, all using the same aluminum channel.
Supplying large-scale commercial projects across North America and Europe requires more than just low prices; it requires a robust, stable, and highly technical supply chain.
As a source manufacturer, LEDLINEA provides advanced extrusion solutions for the global lighting industry. Whether you are a Lighting Brand seeking reliable OEM manufacturing, or a General Contractor specifying heavy-duty profiles for a commercial build, our engineering team is ready to support your bulk requirements.
More importantly, we refuse to compromise on safety. Unlike cheap profiles using recycled plastics, our premium PC covers are strictly V0 Flame Retardant, ensuring your building projects pass the highest fire-safety inspections.
Stop guessing with your linear lighting. Elevate your next project with architect-grade LED profiles designed for longevity.
