Introduction

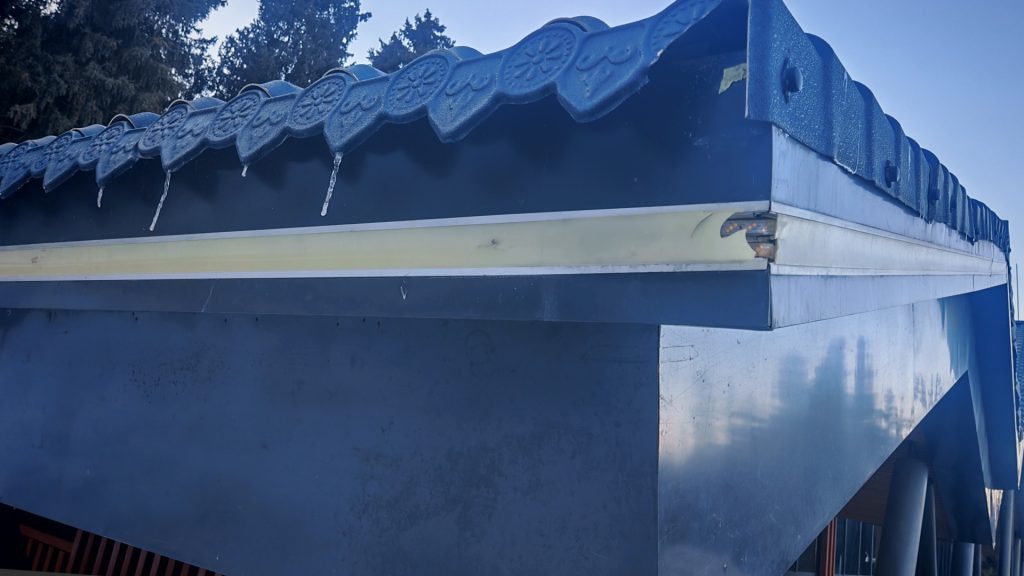

For lighting contractors and project managers, few things are more frustrating than outdoor architectural lighting failing after just one season. You install a beautiful linear LED system in the summer, but by the end of a harsh winter, the profile covers are yellowed, brittle, and shattered.
Why does this happen? The answer lies in a dangerous combination of material chemistry, thermal physics, and poor installation practices. Based on our failure analysis of an extreme winter case in Northwest China, let’s uncover the hidden reasons behind LED diffuser failure.
The Trap of Low-Grade PC and Cheap Alternatives (The Yellowing Factor)
Not all white diffusers are created equal. To cut costs, many low-end suppliers either use cheap Polystyrene (PS) or—even more deceptively—they use low-grade, recycled Polycarbonate (regrind PC) completely stripped of essential UV stabilizers.
Without proper UV protection, the molecular chains of these compromised plastics break down rapidly when exposed to outdoor sunlight. Within months, the cover turns a dirty yellow and loses up to 80% of its flexibility, degrading into a highly brittle shell just waiting to crack.
The “Oven Effect” of Waterproof LED Strips
Outdoor projects often require IP65 or IP67 waterproof LED strips with silicone or epoxy coatings. However, these protective layers can reduce heat dissipation.
When installed inside enclosed aluminum profiles, continuous operating heat from the LED strip may increase internal temperatures over time. Combined with strong UV exposure and extreme outdoor temperature fluctuations, low-quality diffusers can age much faster than expected.
The Winter Snap (The Contraction Factor)
When temperatures plummet to -20°C in winter, the plastic attempts to shrink (contract) significantly more than the aluminum.

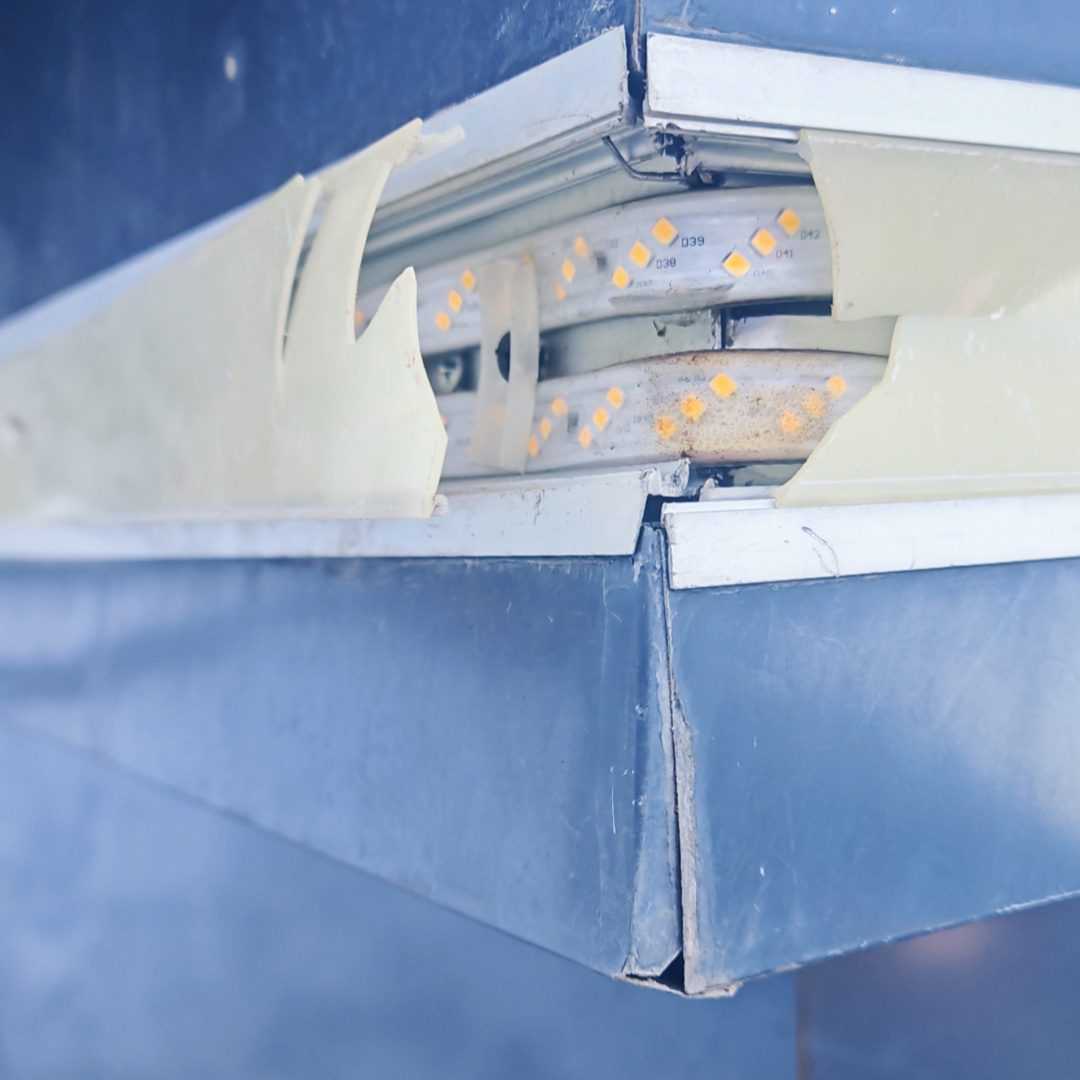

Here is the fatal installation flaw: If the cover was clamped too tightly into the groove or fixed rigidly at both endcaps, it cannot shrink freely towards the center. The rigid aluminum frame holds the ends hostage. As the cold forces the plastic to contract, it generates massive tensile stress (a pulling force) across the material. Unable to yield, the already brittle and yellowed cover simply snaps and tears apart like fragile glass.
How to Prevent Outdoor LED Profile Failures?
To protect your reputation and avoid costly winter callbacks, follow these strict engineering guidelines:
Insist on 100% Virgin Polycarbonate (PC):
Never compromise on materials. Genuine virgin PC contains built-in UV stabilizers compounded directly into the raw material, allowing it to withstand extreme temperature shocks and years of sunlight without turning yellow or brittle
Master the Thermal Movement & Fit Tolerances:
For Summer (Expansion): Always leave a 2-3mm gap at the ends of the diffuser to allow the plastic to expand without buckling.
For Winter (Contraction) – Avoid Overly Tight Fits: Never glue or rigidly fix the diffuser to the endcaps. More importantly, avoid profiles with covers that are excessively tight. The cover must have a slight “sliding tolerance” so it can float or slide slightly within the aluminum groove. If a cover is wedged too tightly, the extreme friction acts just like glue. When winter contraction kicks in, the trapped plastic will be stretched like a tight rubber band until it snaps.
Upgrade Your Waterproofing Strategy (Kill the Oven Effect):
Stop stuffing thick IP65/IP67 silicone strips into sealed profiles. Instead, use bare IP20 strips paired with structural sealing (weatherproof endcaps and O-rings) for maximum heat dissipation. For extreme environments, utilize full PU resin encapsulation (IP68), which completely replaces the PC cover and ensures flawless thermal conduction with zero cracking.
